Before Starting

Be sure that you have access to your KAIROS account at portal.kairoswater.io and that your LoRaWAN radio network is installed and online.

Preparing the Hardware

Each Noah Multifunction Leak Sensor is comprised of:

• One (1) Noah Multifunction Leak Sensor Module
• One (1) Connecting Cable - in most installations the membranes have the clip pre-installed
• One (1) Noah membrane (available in a variety of formats depending on application)
• Two (2) squares of mounting tape

Set-up the Noah Wireless Module

1. All Noah units should arrive on site pre-installed for your location. You can always reach out to support@kairoswater.io to ensure this step has been completed if you encounter any issues.

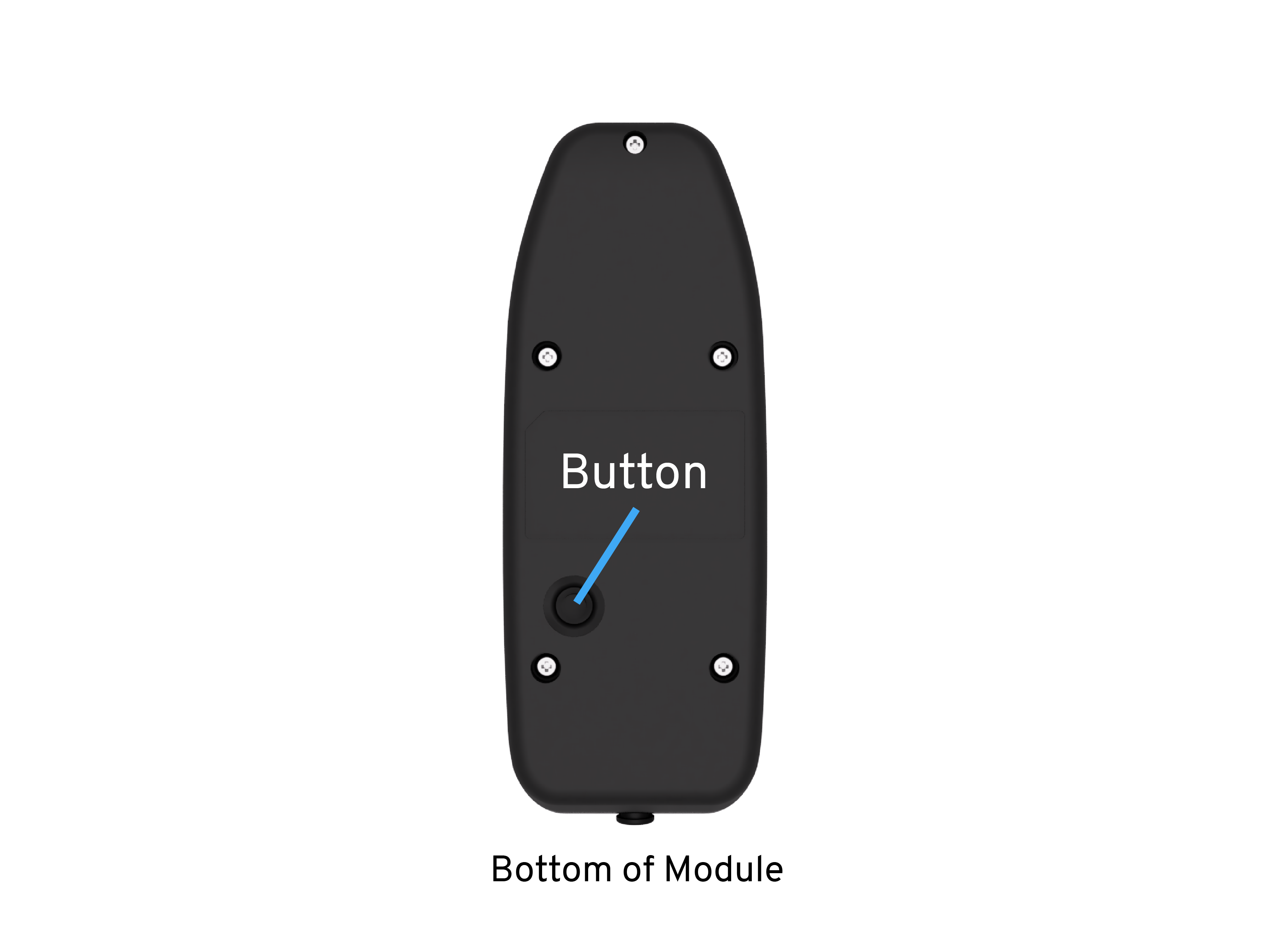

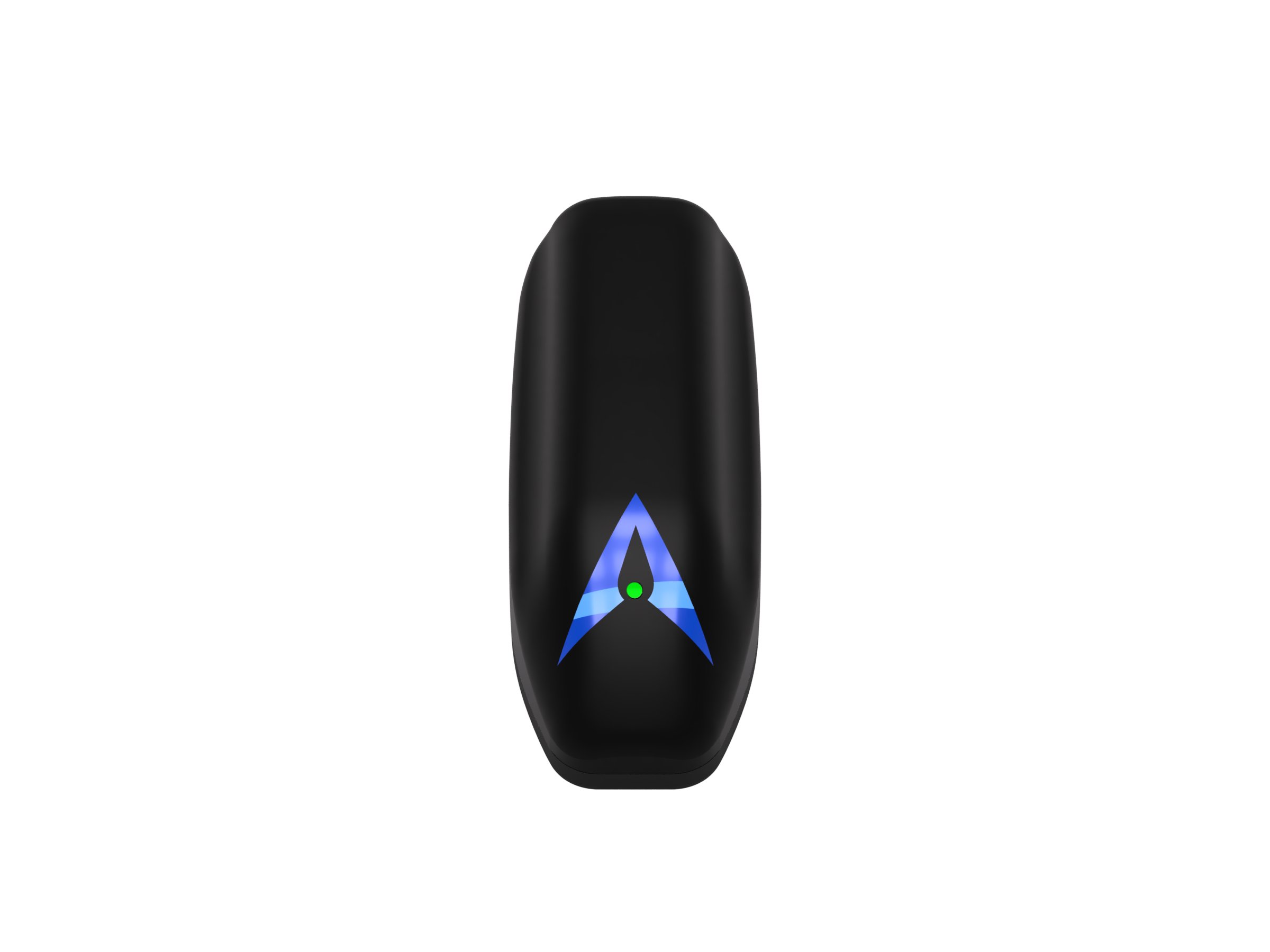

2. Press the button on the bottom of the module while checking the LED in the nose for a flash of green.

3. If the LED does not flash green, the module is off. Push and hold the button for three (3) seconds until the LED begins to flash red-green-blue.
4. Check portal.kairoswater.io to see if the module is showing as online now. (Refer to Finding devices in Kairos' Portal if you have issues finding devices.)
5. More detailed information, including troubleshooting steps, is available in the Noah User Manual.

Preparing for Installation

For the best sensitivity, the membranes should be installed over a flat surface, free of debris, deep gaps, or dirt/sand/dust. It is a good practice to sweep or vacuum the space onto which the membrane will be applied. In addition, for the “Tee” sensors and some water heater installations, it will be important to ensure the surfaces on which adhesive will be applied are cleaned before adhering the membrane to the surface.

Installing Membranes

1. 1. Ensure that the membrane you are preparing to install is appropriately sized for the area it will be monitoring. There are a variety of membrane formats available for installation. Choosing the correct one for the area you want to monitor is important. More on membrane selection in the Installing Membranes section.
   2. Membranes should cover the maximum area under the monitored space without bending or buckling. Ideally, the membrane should not stick out in highly trafficked areas where they would be stepped on or kicked out of position.
   3. Some membranes come with extra tabs, if the cable is attached to one tab, and the other becomes unnecessary or interferes with the installation, you may cut it off so that the edge if flush with the bulk of the membrane.
   4. There is a protective film covering the black conductive traces. THIS PLASTIC FILM MUST BE REMOVED BEFORE INSTALLATION. Simply peel it away from the heavier plastic and traces. In most cases, this plastic layer will be removed before arriving on-site.
   5. Connect the membranes to the wireless modules using the supplied cable.
   6. If the cable is not already attached to the membrane,

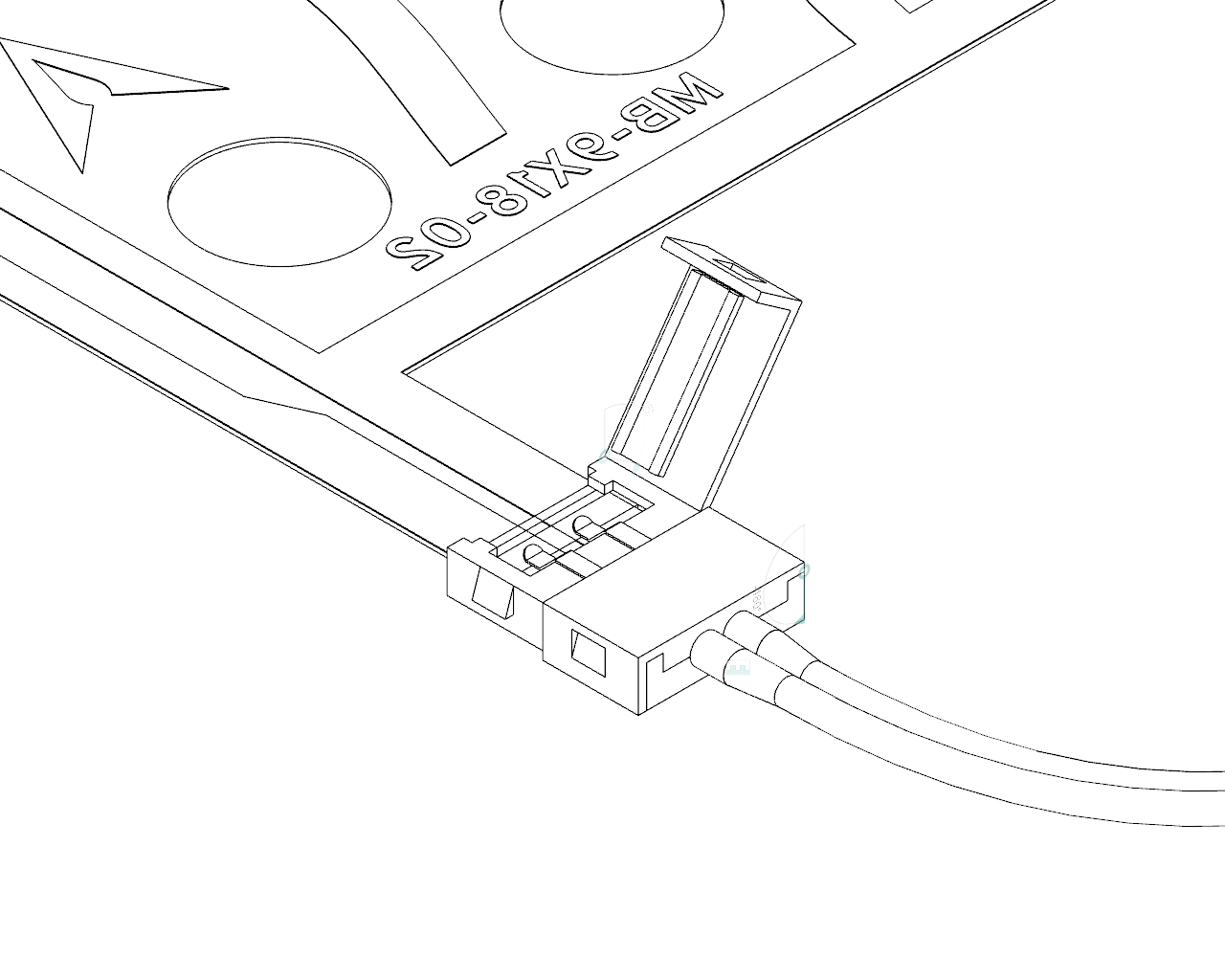

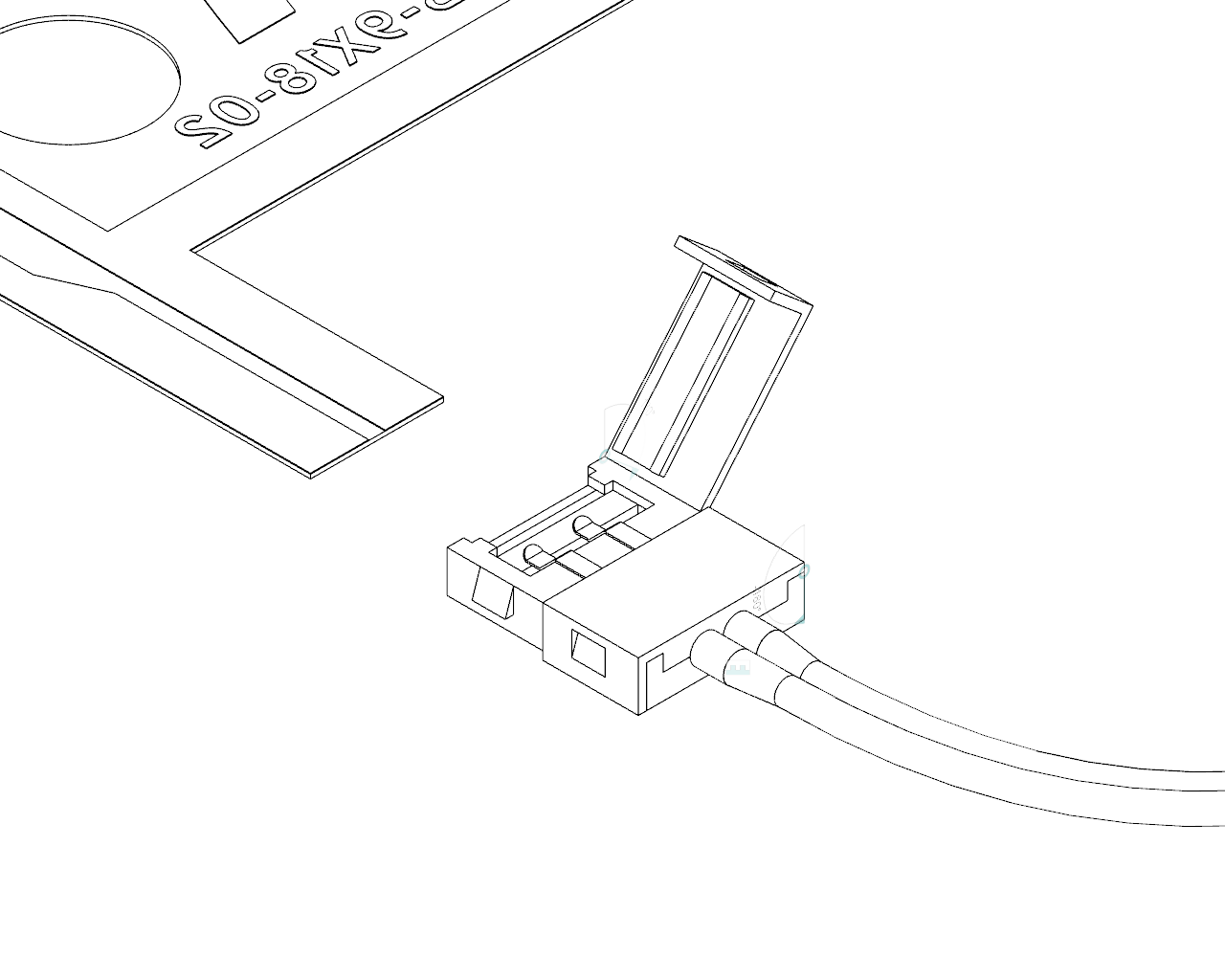

      1. Slide one of the tabs sticking out from the membrane into the slot of the ribbon connector making sure the dull black strips are touching the silver contacts in the white connector.

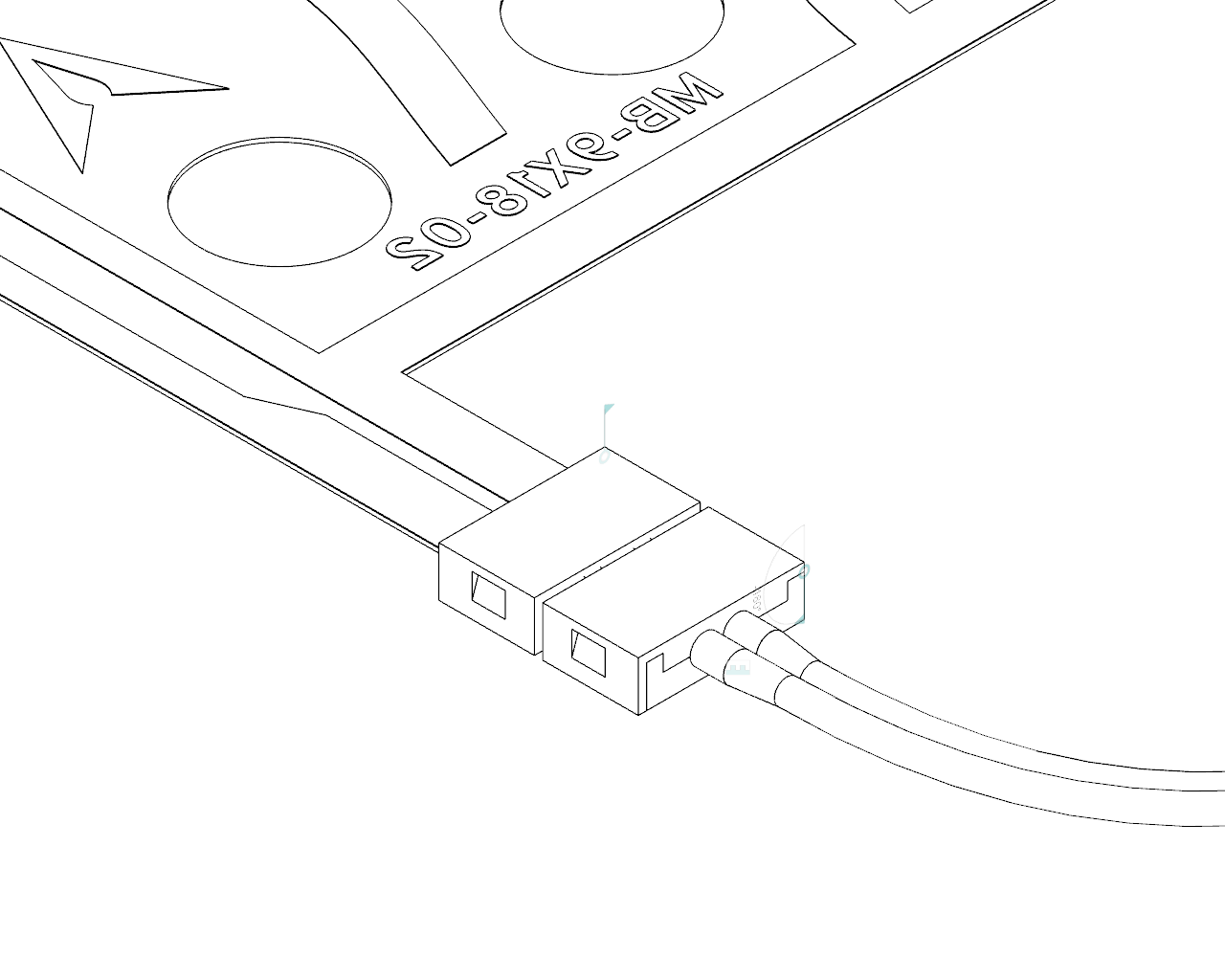

      2. Clamp the cover over the tab so that the dull black contacts on the membrane touch the contacts inside the ribbon connector.
      3. Insert the small plug into one of the wireless module's ports.

   6. In the spaces where the membranes will be slid under the thin gap for an appliance (dishwasher, refrigerator, washing machine, etc), the wireless module can be tucked under the cabinet overhang using the 3M adhesive on its bottom. Cords can be tucked underneath and retained using the provided wire clips, or in a space under or next to the appliance. Additionally, the small strip of gaffer's tape can be used to hold the membrane connector to the floor.

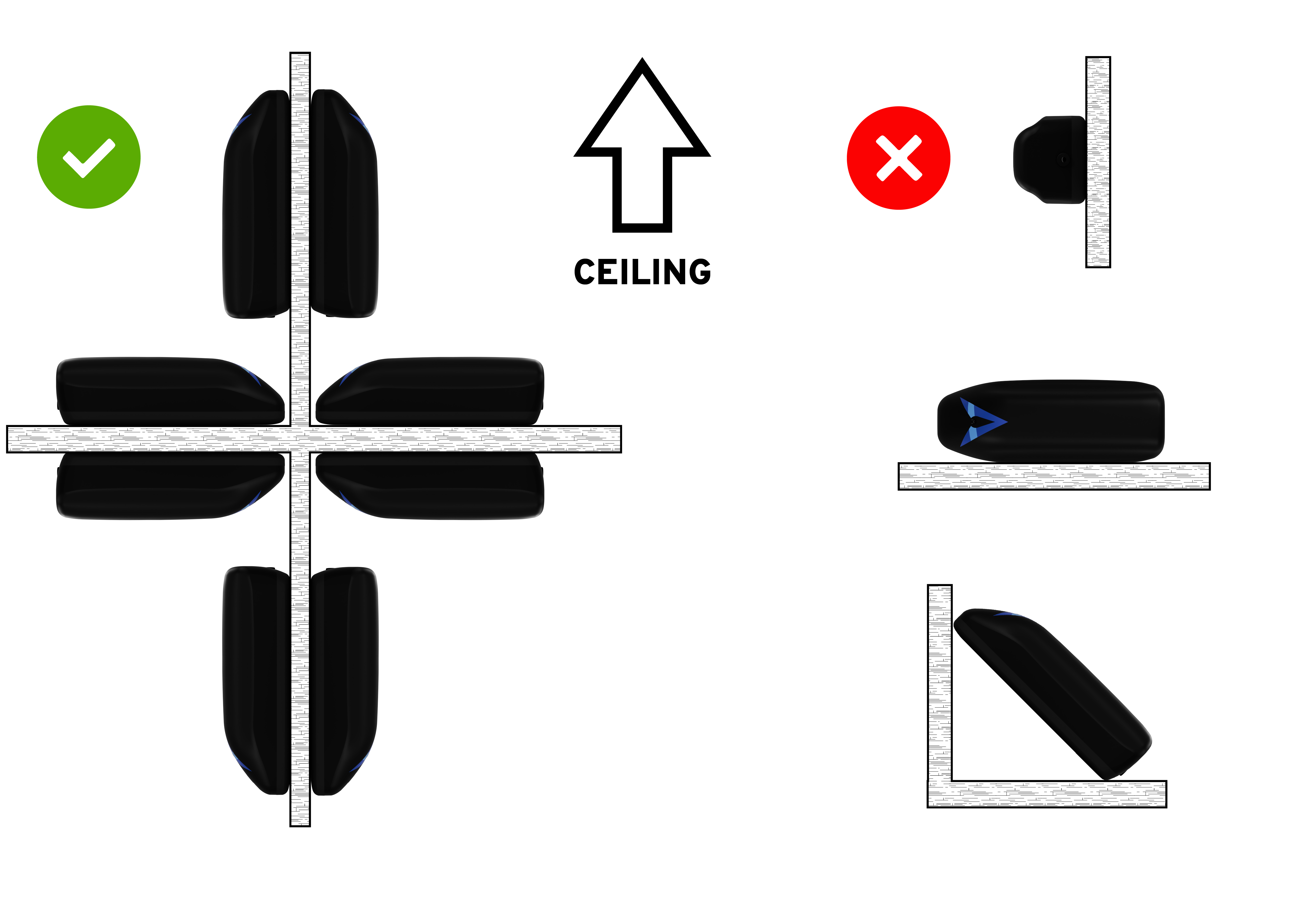

TIP: Place the module in either a vertically or horizontally level orientations as shown in the following illustrations to ensure the tamper sensor is not triggered by ambient vibrations.

 9”x18” Format

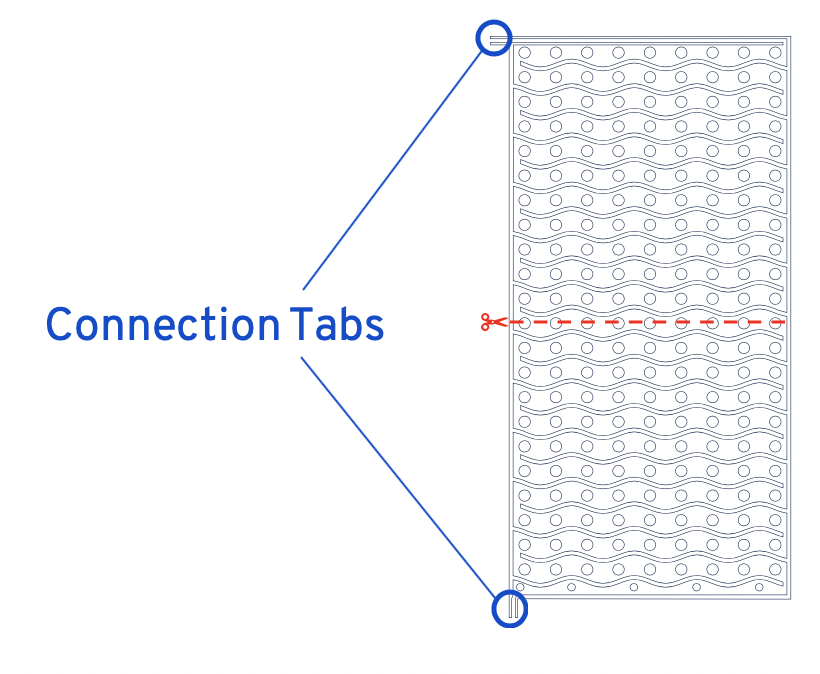

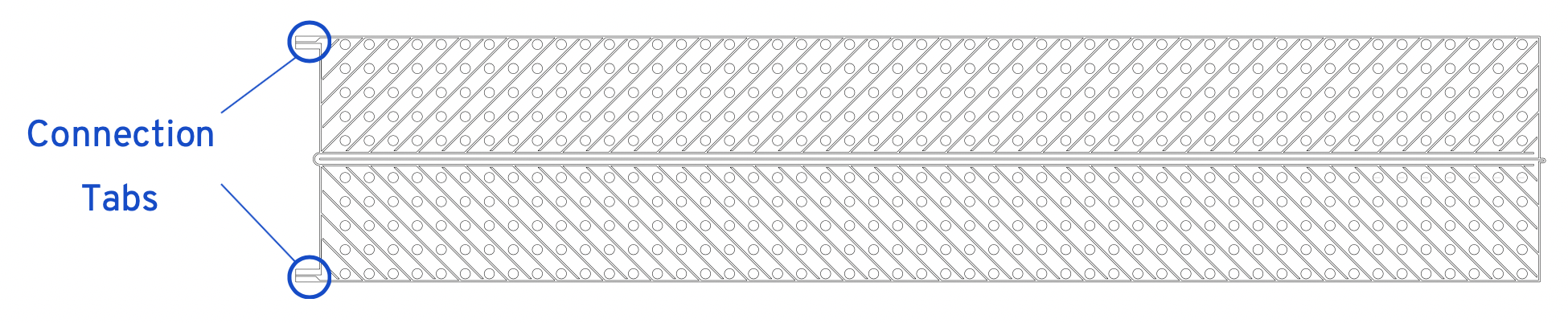

This format is recommended for Ice Machines and smaller coverage areas where the larger format will not fit. This format can be shortened by cutting it along the horizontal between the black traces an through a row of perforations leaving a connection tab for both halves – depicted below. The remaining halves can be connected to separate wireless modules or two ports on one wireless module.

20”20” Format

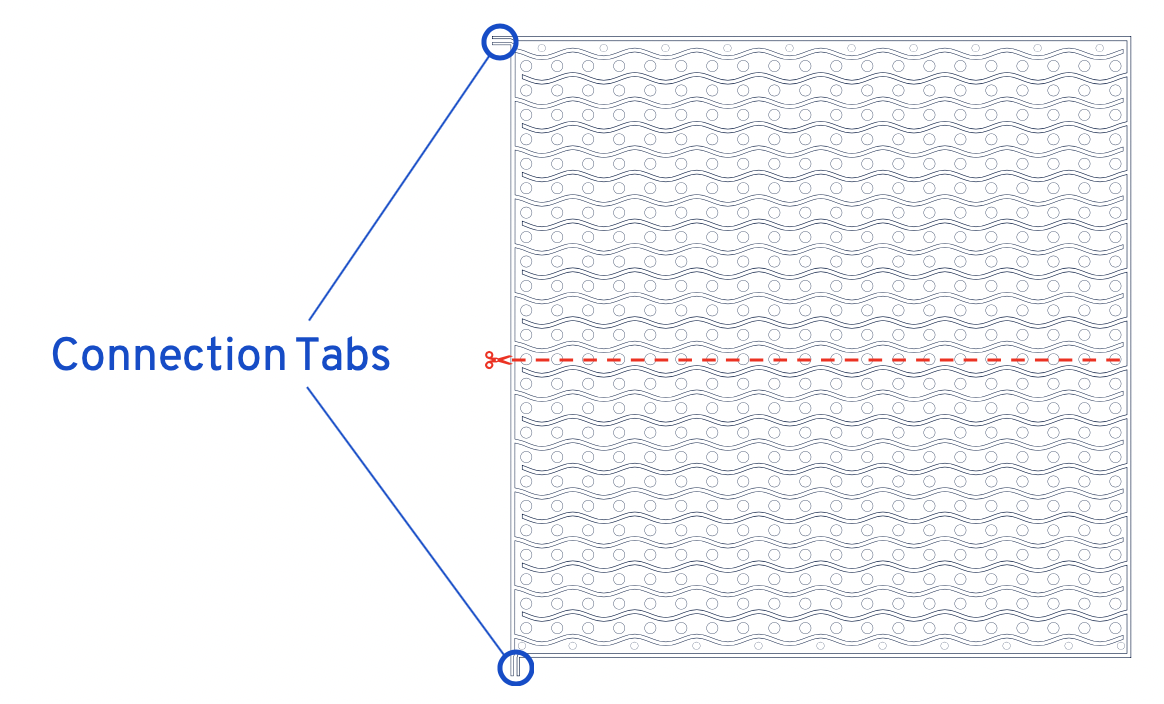

This format is recommended for Clothes and Dish Washing Machines. As with the 9”x18” membrane, this format can be shortened by cutting it along the horizontal between the black traces an through a row of perforations leaving a connection tab for both halves – depicted below. The remaining halves can be connected to separate wireless modules or two ports on one wireless module.

20”x30” Format

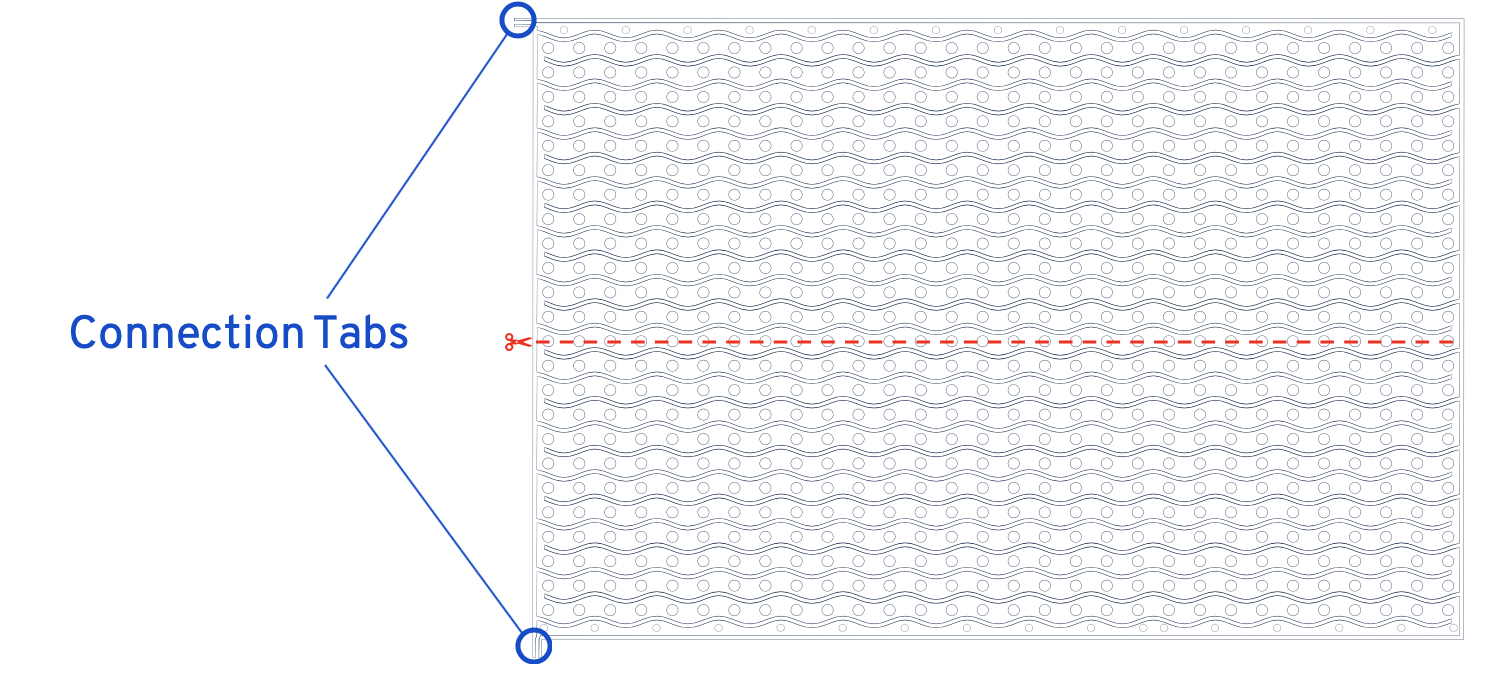

This format is recommended for refrigerators and the largest areas. Once again, this format can be shortened by cutting it along the horizontal between the black traces an through a row of perforations leaving a connection tab for both halves – depicted below. The remaining halves can be connected to separate wireless modules or two ports on one wireless module.

Water Heater & PTAC (6”x30”) Format

This format is designed to fit under most PTAC (Portable Terminal Air Conditioning) units and wrap around water heaters when cut in half.

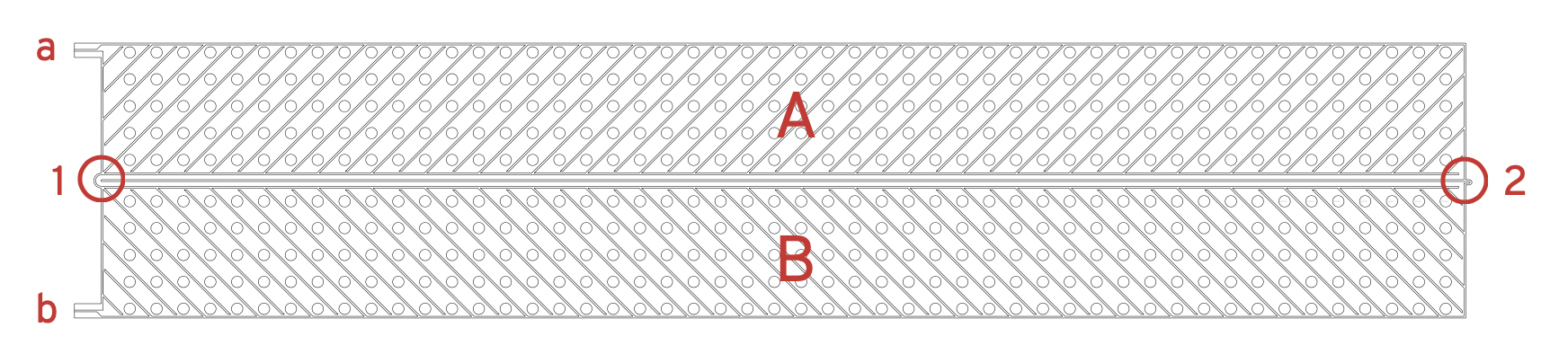

After cutting “bridges” 1 and 2, regions “A” and “B” can be monitored separately by connecting the leads from “a” and “b” connection bridges into separate wireless modules. In this way, the amount of fluid covering the membrane can be determined by the number of regions that are alarming.

The design can be cut in half to create two 3”x30” membranes to wrap around opposing sides of a water heater . Each half should be connected to a wireless module.

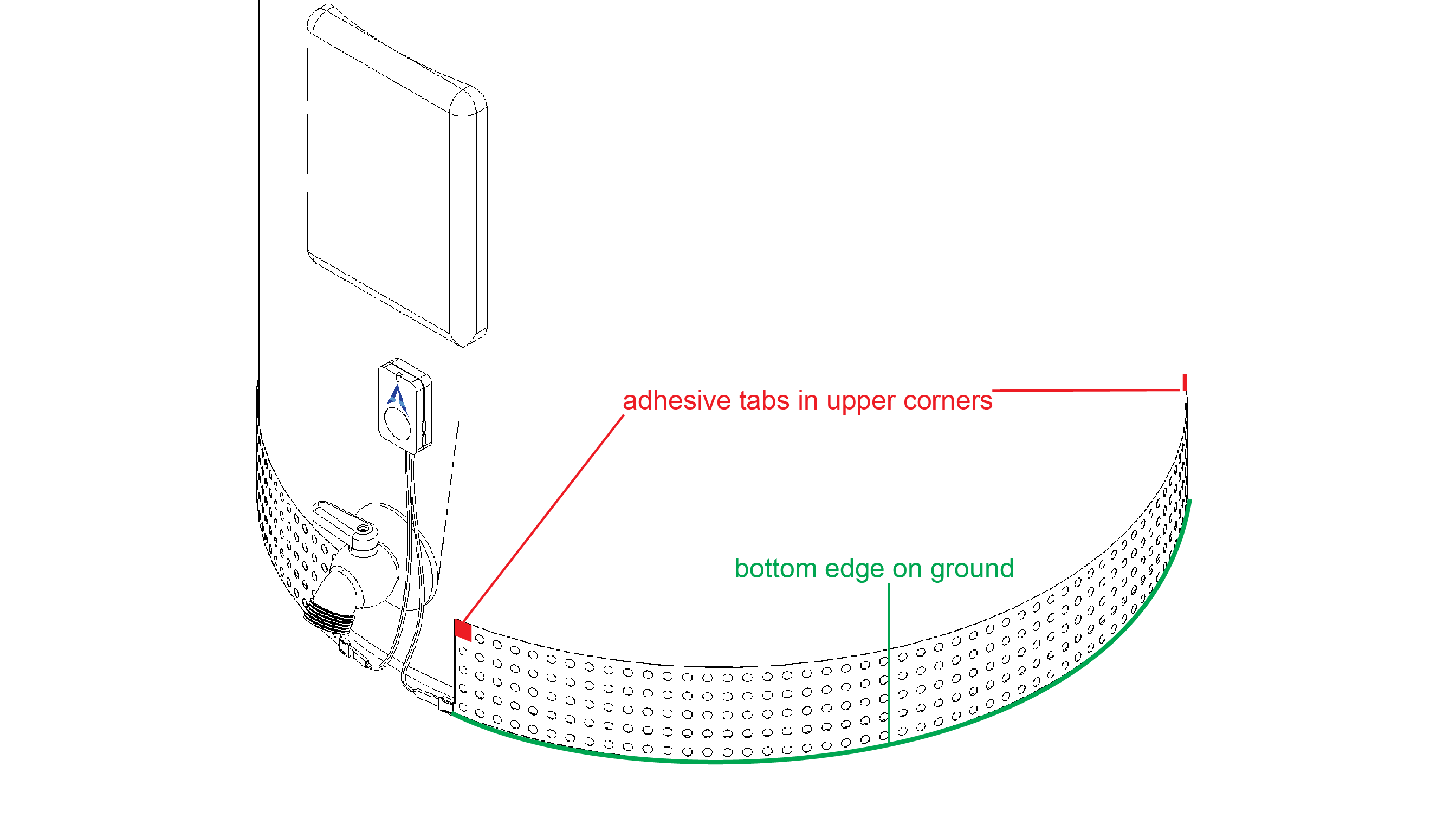

Small adhesive tabs should be placed at the top corners of the membrane to keep the plastic attached to the side of the water heater. The connection tab and the plastic edge should touch the floor around the water heater.

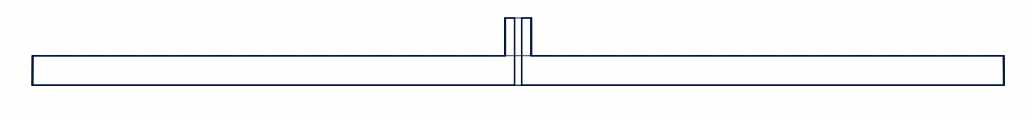

1”x12” (Tee) Format

This format is recommended for tight spaces and around the base of toilets or inside overflow/condensation pans.

“Tee” design of the Noah Membrane primarily for monitoring toilet bowl overflow and leaks where a wide, flat sheet is inconvenient

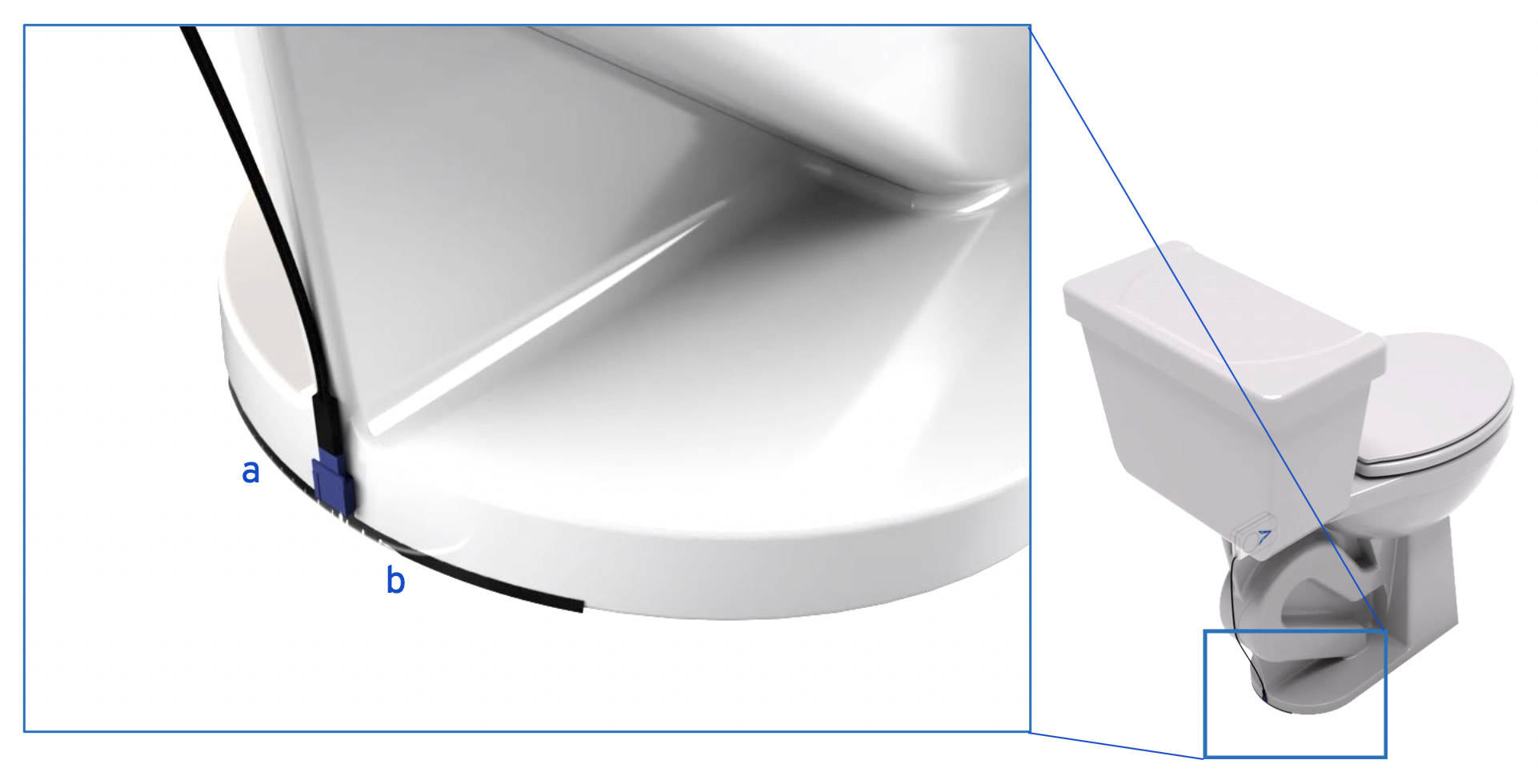

Tee membrane installed on the back of a toilet base where anode (a) and cathode (b) are bridged by a leak on the floor

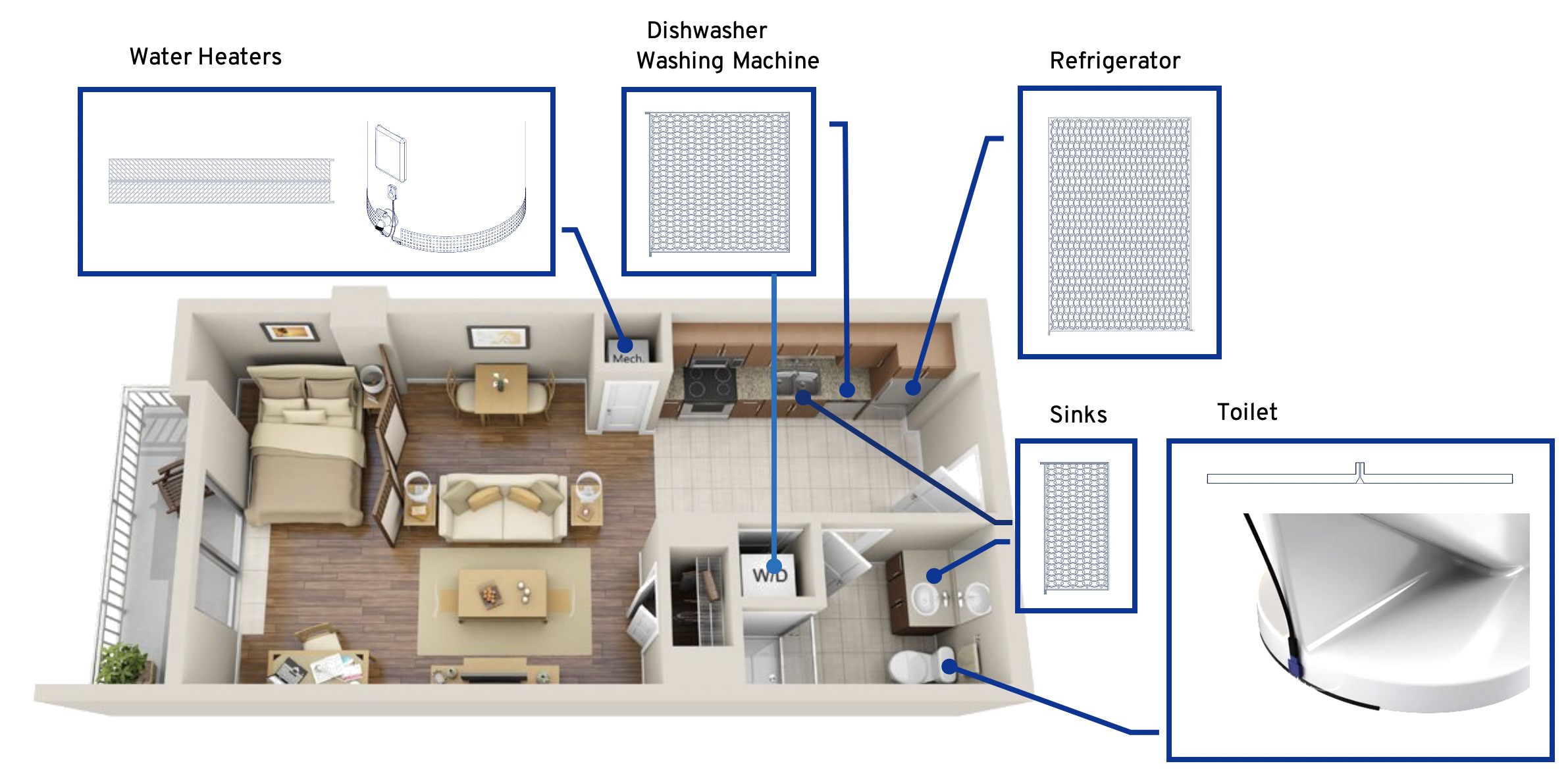

Common Installation Areas

Tips

Installing the membrane upside-down - with the conductive side facing up - desensitizes the sensor to leaks. If the leak sensor is triggered by accidental exposure to small amounts of liquid (ice cubes falling on the floor and melting under the membrane), this orientation ensures that there must be a significant amount of water to trigger while avoiding the false alarms.
