APPLICATION

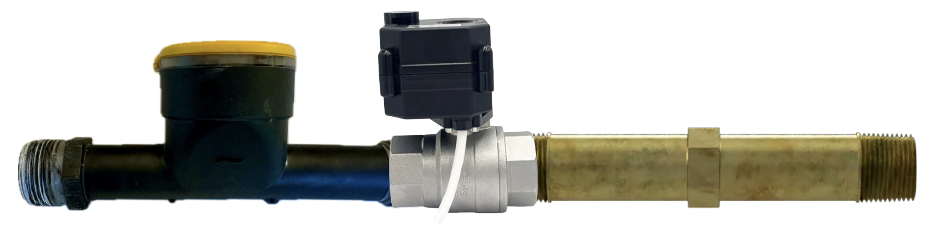

The Moses Alternate is designed for accurate measurement of water consumption in households, apartment buildings and small commercial premises, where low flow sensitivity is important. The added valve and wireless controller give flow control capabilities to the system.

Static flow measurement - no moving parts, no wear and tear
Very high metering accuracy
Eliminates measuring deviations caused by sand, suspended particles or air pockets
Long-term measurement stability and reliability
9 digits, multi-line LCD. Total volume and instantaneous flow rate indication at the same time
Valve close/open automations based on a schedule or other sensor triggers; including leak, temperature, and flow thresholds

TECHNICAL FEATURES

Sensitive in low flows – starting flow as low as 0.01 gpm
Maintenance free device, battery lifetime > 16 years
Installation in any position
No straight pipe run needed
No measurement of air
IP68 protection class
Bi-directional flow measurement
Durable composite body
Measurement units: Gal-GPM, cubic feet - cubic feet/h
Strainer and check valve (optional)
Integrated LoRaWAN communication, US902-928 MHz band
- Radio will wake up and transmit data after 3 gallons of water has flowed through the unit
- It may take up to 8 hrs to see the first collection of data in portal.kairoswater.io

DATA REGISTRATION

Total volume
Forward volume
Reverse volume
Maximum flow rate value and date
Minimum flow rate value and date
Operating time without an error
Operating time
Error code
Water temperature indication

DATA LOGGER - HISTORY VALUES

Hourly, daily, monthly values of the measured parameters are stored in internal memory.

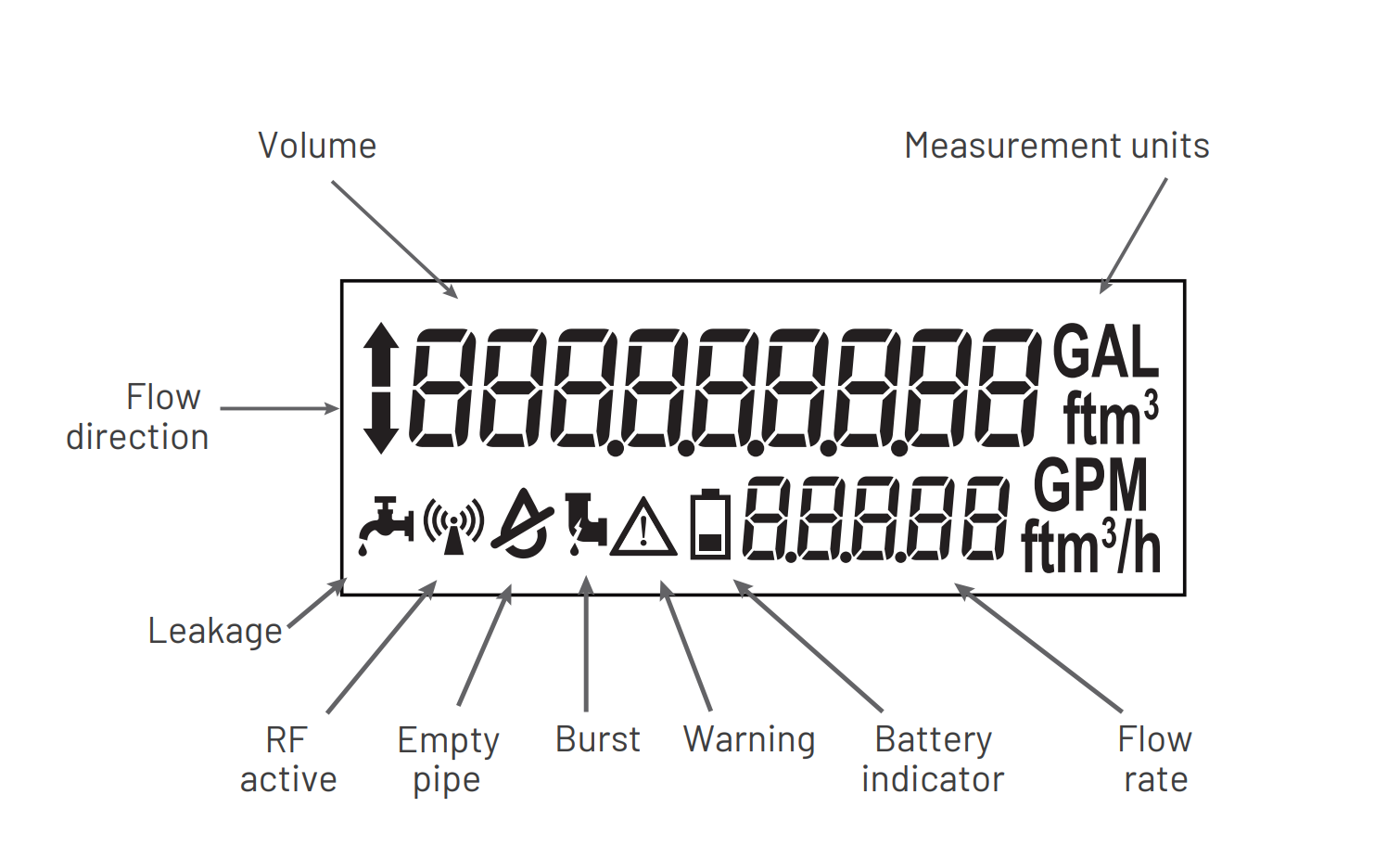

LCD INDICATIONS AND ALARM

Flow direction indication
Battery level indication
Leakage
Burst
Backflow
Empty pipe
Radio communication
Warning indication
Low temperature warning

TECHNICAL DATA

Flow sensor sizes	DN20, DN25, DN32
Flow measurement	New meter measurement accuracy is within the following limits: ± 1.5% over the normal flow range ± 3.0% from the extended low flow range to the minimum flow value
Measured Fluid Temperature Range	33°F to 194°F (0.1°C to +90°C) According to AWWA C715-18, measurement accuracy is maintained at water temperatures up to 80° F (+27° C)
Valve TTC (Time-to-Close)	6 seconds
Valve Response Time	<60 seconds
Storage Temperature (empty flow sensor)	-13 …158° F (– 25…70° C)
Protection class [IP]	IP67
Installation	Indoors or outdoors
Battery	3.6-volt lithium thionyl chloride

SPECIFICATIONS

Pipe Size	¾“ short	1“	1 ½“
Size Designation x Lay Length	¾“ x 7 ½“ (20 x 190 mm)	1“ x 10 ¾“ (25 x 273 mm)	1 ½“ x 12 5/8“ (40 x 324 mm)
Operating Range	0.15 … 30 gpm (0.034 ... 6.8 m³/h)	0.3 … 50 gpm (0.068 ... 11.4 m³/h)	0.6 ... 100 gpm (0.163 ... 22.7 m³/h)
Extended Low-Flow Rate	0.044 gpm (10 l/h)	0.11 gpm (25 l/h)	0.275 gpm (62.5 l/h)
Maximum Continuous Operation (Safe Maximum Operating Capacity)	30 gpm	50 gpm	100 gpm
Pressure Loss	3.6 psi at 15 gpm (0.25 bar)	2.3 psi at 25 gpm (0.16 bar)	2.3 psi at 50 gpm (0.16 bar)
Max Ambient Humidity	0% to 100% condensing
Maximum Operating Pressure of Meter Housing	142 psi (9.8 bar)
Register Type	Straight reading, permanently sealed two line LCD; digits are 0.33 in. (8.3 mm) high
Register Display	Consumption (US gallons or cubic feet) Flow rate (US gallons per minute or cubic feet per hour) Alarms and error codes (if any) Flow direction indicator Radio activity indicator
Register Capacity	999,999,999 gallons 999,999,999 cubic feet
Display Resolution in TEST mode	Gallons: 0.XXX Cubic feet: 0.XXX

Certifications

NTEP Certification of Conformity #: 22-032
Fire rating: Pass UL2043 (Plenum Rating)
